Laboratory Yarn Singeing Machine Staple Fiber 10 Spindles Singeing Frame for Cotton and Natural Fiber Blended Yarns

Basic Info.

Model NO.	HR
Processing Material	Cotton
Producing Process	Spinning Equipment
Certification	CE, ISO9001: 2000
Warranty	12 Months
Customized	Customized
Condition	New
Delivery Date	Fast Delivery in 7 Days
Net Size (Length * Width * Height)	15540*1320*1868mm
Working Experience	32 Years′ Experience
Number of Spindles	12 20
Package Diameter	up to ф260mm
Processing Count	10-160s/2
Voltage	380V/50Hz 3phase Can Be Customized
Warranty Time	Offer Free Spare Parts and Service Within 12 Month
After-Sales Service for	24 Hours Technical Support by Email, Call, Video
Machine Painting Color	Be Made According to Your Need
Price	Lowest Reasonable Offers in The Market
Machine Item	Laboratory Yarn Singeing Machine
Transport Package	Standard Package or Nude Package Customized
Specification	Overall power 17kW
Trademark	HUARUI
Origin	Qingdao City
HS Code	84451112
Production Capacity	100/Week

Product Description

Brief introduction:
1, Application

1. Main machine configuration:

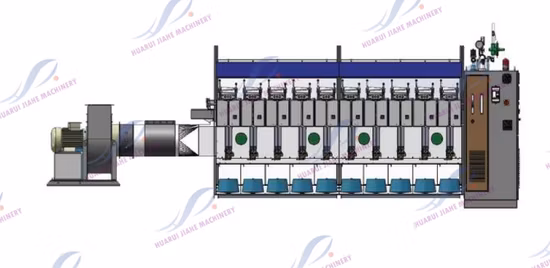

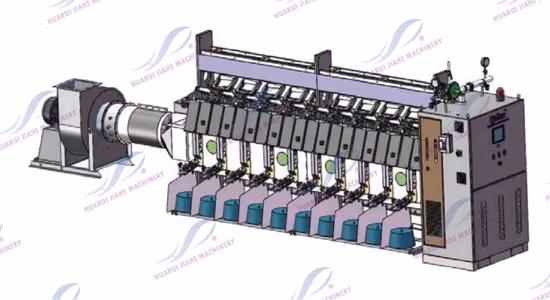

1. The frame is single-layer and double-sided, and the grooved cylindrical shaft is collectively driven. Each section has 10 spindles. The standard machine has 80 spindles and this machine has 80 spindles.
2. The front of the machine is composed of 2 main drive motors (Siemens), man-machine interface (Siemens), PLC (Siemens), frequency converter (Siemens), flowmeter, flow control valve, gas solenoid valve (Dongsi, Germany), pressure reducing Valve (Japan), pressure gauge (Dongsi, Germany), induced jet fan (Hong Kong), power supply, switch, etc.
3.
A: Air and gas mixed gas system;
B: Combustion chamber and fire splitter combustion system;
C: Metal grooved drum, high-speed belt seat bearing (Japan), high-speed creel winding system;
D: Dust removal system is composed of dust suction port, collective drive dust removal guide wheel, dust removal air duct, and dust removal fan;
E: A secondary yarn tension control system composed of two mechanical tensioners and mechanical thread sensors;
F: Pneumatic lifting system for yarn breakage creel.
4. Itinerant blowing and suction machine (Jiangsu Hengyuan).

2, Parameters:

No.	Item	parameters
01	Winding form	Grooved drum, random winding
02	Winding shape	parallel or tapered
03	Winding stroke	152mm
04	Winding bobbin	5°57' (sample tube provided by the buyer)
05	Package diameter	up to ф260mm
06	Winding weight	up to 3kg
07	Mechanical speed	up to 1000m/min
08	Processing count	10-160s/2
09	Burning Gas type	Natural Gas/Liquefied Petroleum Gas
10	Number of spindles	80 spindles (10 spindles per section)
11	Spindle pitch	326mm
12	Machine form	Double-sided machine
13	Drive mode	Single-sided centralized drive
14	Installed power	19.2KW
15	Dimensions	15540*1320*1868mm

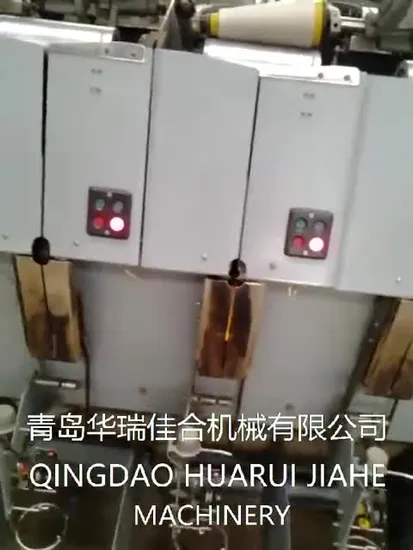

Detail machine pictures, all photoes are for 100% real shooting ! For more pictures, video and details, please email me!
